MV Magni » 861 S Arturo Magni

Make MV Magni
Model 861 S Arturo Magni
Capacity 861
Start Year 1978
End Year 2100
Bore Stroke 70.0 x 56.0
Engine Config In-line
Number Of Cylinders 4
Engine Type Four Stroke
Valves per Cylinder 2
Valve Operation DOHC
Power 71
Cooling Air
Gears 5
Transmission Chain
Weight 245
Front Wheel 3.50-18
Rear Wheel 4.00-18
Front Brake Dual disc
Rear Brake Single disc
Top Speed 230
Fuel Cap 24
RPM 10000
Summary

Specifications to suit client. Many bikes built by others using Magni frames and engine components.

MV Magni 861 S Arturo Magni Chain drive kit available from Magni
Chain drive kit available from Magni
MV Magni 861 S Arturo Magni

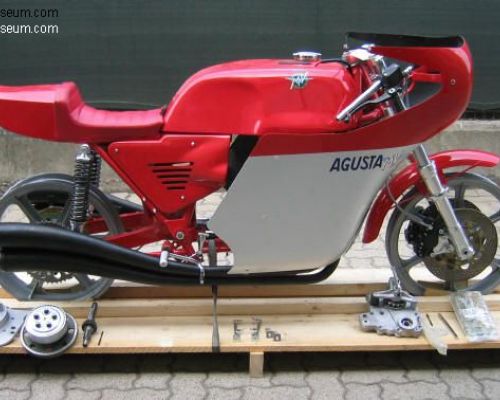

MV Magni 861 S Arturo Magni Complete Magni kit.
Complete Magni kit.
MV Magni 861 S Arturo Magni
MV Magni 861 S Arturo Magni A clients bike at Magni July 2004
A clients bike at Magni July 2004
MV Magni 861 S Arturo Magni Alloy tank to be...
Alloy tank to be...
MV Magni 861 S Arturo Magni Most Magnis were plain red with a single MV transfer on the fuel tank. This bike has alloy seat as well as tank.
Most Magnis were plain red with a single MV transfer on the fuel tank. This bike has alloy seat as well as tank.
MV Magni 861 S Arturo Magni Frame kit available from Magni
Frame kit available from Magni
MV Magni 861 S Arturo Magni 861 big bore kit available from Magni
861 big bore kit available from Magni
MV Magni 861 S Arturo Magni Dry clutch conversion kit available from Magni
Dry clutch conversion kit available from Magni
MV Magni 861 S Arturo Magni
